Draw a Magic Egg Tangram

A Tangram is a square, divided into pieces.

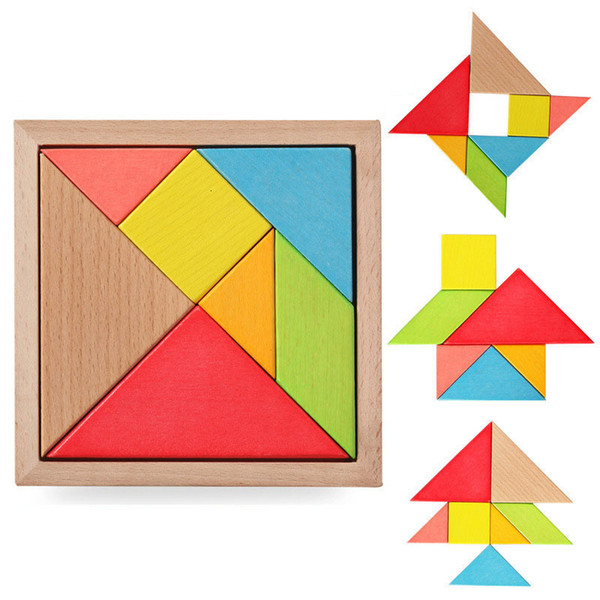

The pieces are arranged in different ways to create pictures or patterns, like this:

The instructions here are for creating a different kind of Tangram. This one is egg shaped, and can be used to create different bird images.

The construction of the Tangram follows 9 separate steps. So, while this is a fun activity, be sure you have the materials to hand and the time to complete it.

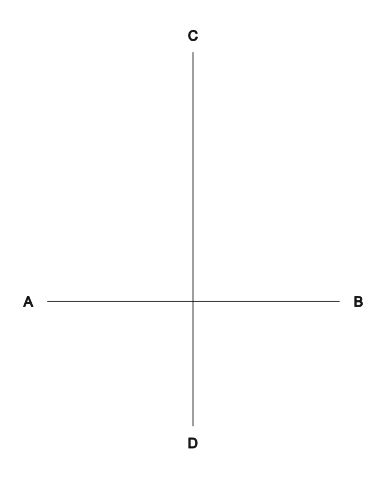

1- Start by drawing two lines on a piece of paper or (better) some card. A horizontal line (we’ll call this AB), and a vertical one (labelled CD in the picture here:

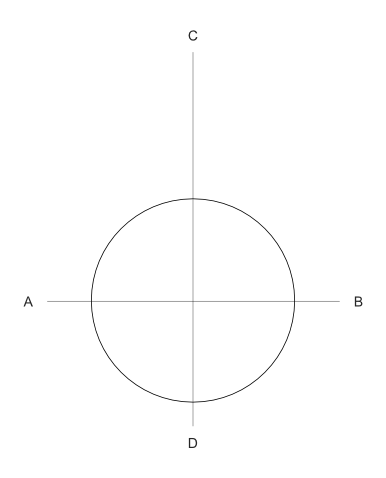

2 – Use the pair of compasses set to a radius of 5cm and draw a circle with the centre on lines AB and CD:

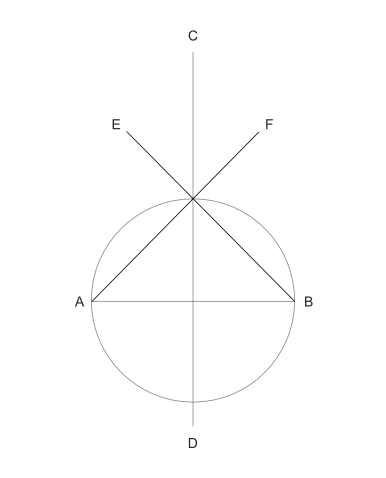

3 – Draw two more lines. One from point A, going through the top of the circle, and one from B, through the same point:

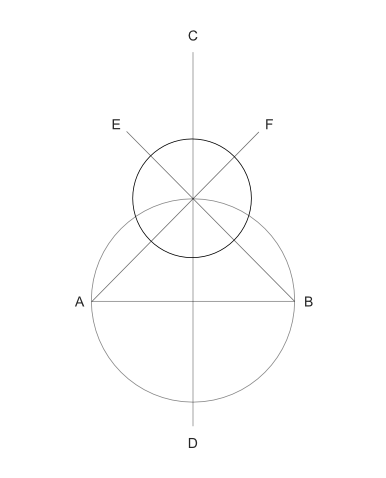

4 – Use the centre of these two new lines (AF and BE) to draw a circle with a radius of 3cm:

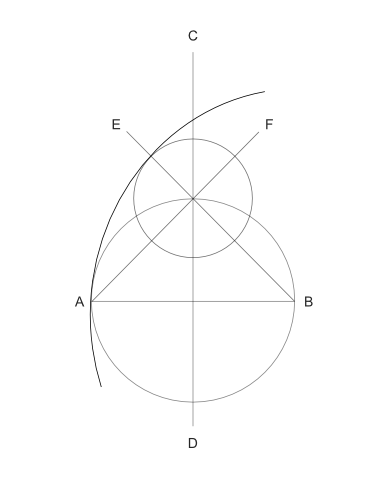

5 – Draw a large arc (radius 10cm) with the centre point on B, it should touch points A and E:

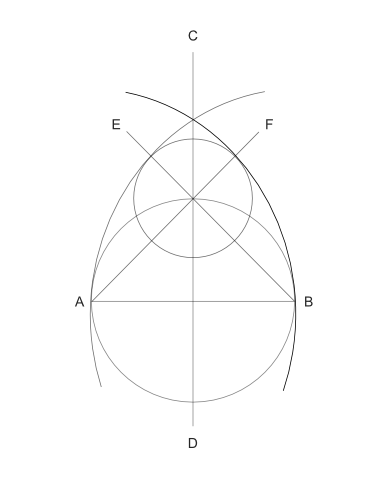

6 – Repeat this on the other side, an arc (radius 10cm) with the centre point on A:

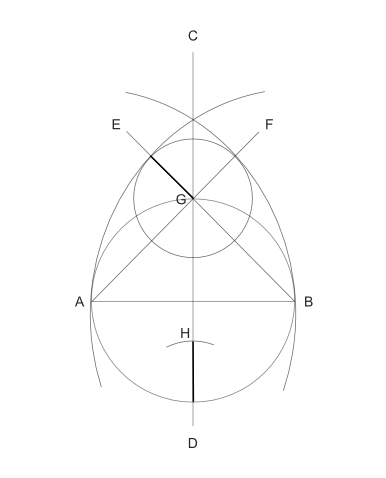

7 – Set the compasses back to the size of the circle you drew at the top (the distance between E and G, 3cm), and use them to make the mark labelled H on line CD:

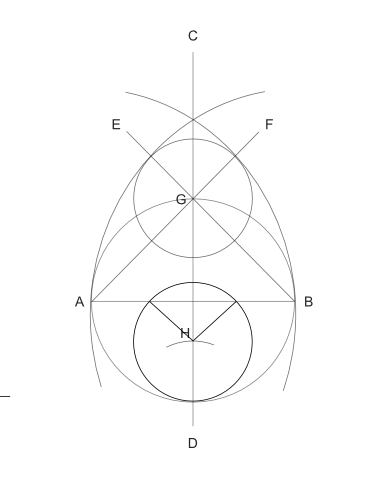

8 – Draw a circle with the same radius (3cm) centred on H. Then draw in the two diagonal lines:

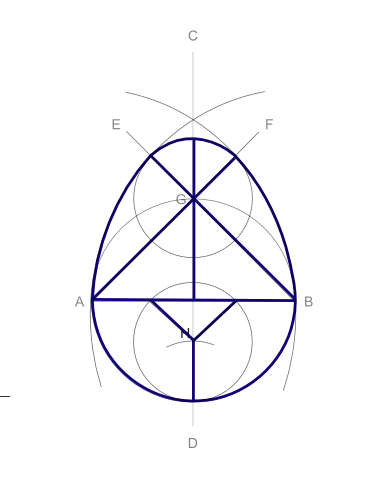

9 – The completed Egg Tangram outline:

Cut along the bold lines to make an egg puzzle with 9 separate pieces.

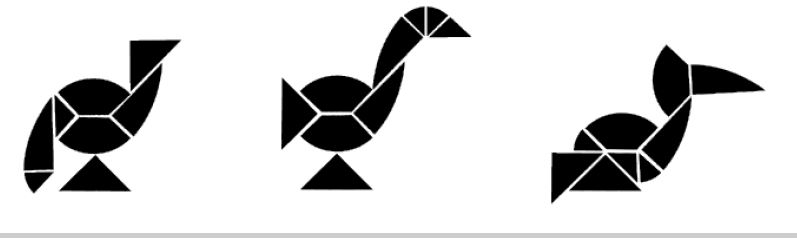

Now, see if you can put the pieces together to make any of these strange bird designs.

Have fun.

Have a go at designing your own bird-like shapes using the Tangram pieces.

What other shapes or patterns can you make with the pieces?
